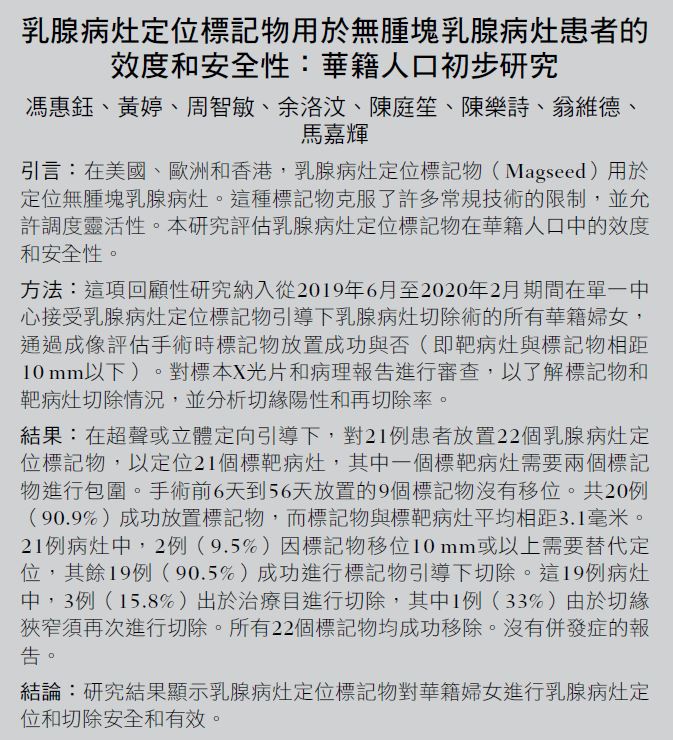

With the increasing use of screening mammography and advances in neoadjuvant therapy, tumours at the time of surgery are more often non-palpable.1 2 3 4 5 6 7 Accurate image-guided localisation is the key to successful excision of these lesions.

Hookwire localisation has been the traditional standard method of localising non-palpable breast lesions for decades. It has many inherent limitations and challenges. Wire placement has to be done on the day of surgery to minimise the risk of wire dislodgment, which limits the flexibility of radiology appointments and scheduling of surgery, therefore potentially resulting in delayed surgery.8 Wire displacement and wire transection with retained fragments have also been reported.5 9 10 The track of the wire limits the surgical approach, causing additional healthy breast tissue to be dissected along the course of the wire.5 9 10 These can affect cosmetic outcome.5 9 10

More recently, radioguided occult lesion localisation (ROLL) has gained popularity, as it overcomes many disadvantages of wire localisation and is reported to be equally effective compared to hookwire.11 However, it also needs to be performed on the same day or a day before surgery due to the half-life of the radiotracer.12 Moreover, radiation safety precautions and the need of Nuclear Medicine unit support limit its widespread use.

Recently, non-radioactive non-wire techniques have started to emerge and address many of these issues. A magnetic marker system (Magseed, Endomagnetics, Cambridge, United Kingdom) is one of these techniques and received clearance for longterm breast implantation from United States Food and Drug Administration in February 2018. It was introduced in Hong Kong in 2019. Our study aimed to evaluate the efficacy and safety of magnetic seed marker localisation of non-palpable breast lesions. To the best of our knowledge, there is no prior publication on magnetic seed marker localisation in a Chinese population.

A retrospective review of all Chinese women who underwent magnetic seed marker localisation for non-palpable breast lesions from June 2019 to February 2020 in a single institution was conducted. Patients were selected by breast surgeons and breast radiologists in consensus by reviewing images on the basis of target visibility and target depth. Patients who had a magnetic seed marker placed but surgery performed out of the study period were excluded.

The magnetic seed marker (Magseed, Endomagnetics, Cambridge, United Kingdom) is made of non-radioactive paramagnetic low-nickel stainless steel. The seed is 5 mm × 0.9 mm, which is the smallest non-wire non-radioactive localisation device available. The magnetic seed marker is preloaded in a sterile 7- or 12-cm 18-gauge deployment needle.

The magnetic seed marker is intended to be placed at a depth up to 3 cm from the skin according to the manufacturer’s instructions13 due to limitations of signal transmission from a greater depth. It is localised with a detector probe (Sentimag, Endomagnetics), which generates an alternating magnetic field to transiently magnetise the seed.14 A visual numerical value and audio feedback are produced according to the strength of the magnetic field, thus signalling the distance of the seed from the detector probe.14

Magnetic seed marker placement was percutaneously performed under image guidance by one of four breast radiologists with 3 to 19 years of experience performing image-guided breast localisation, or by a breast radiology trainee who was directly supervised by one of the breast radiologists. During ultrasound-guided placement, the patient lies supine and rolled slightly with a wedge put under the shoulder on the ipsilateral side to spread the breast evenly. The ipsilateral arm is raised over the patient’s head to facilitate a larger sterilisation field. During stereotactically guided placement, the patient lies on either side or sits up to facilitate breast compression by the stereotactic table.

Target-to-seed distance was evaluated in real time for magnetic seed markers placed under sonographic guidance and was measured on post-procedure mammograms in mediolateral and craniocaudal projections for magnetic seed markers placed under stereotactic guidance. If multiple magnetic seed markers were placed in one breast, the minimum distance between the markers was measured. For patients with magnetic seed markers inserted before the day of surgery, target ultrasound and/or mammography were performed on the day of surgery to evaluate for any delayed magnetic seed marker migration, which was defined by any difference between the initial target-to-seed distance after the localisation procedure and the final target-to-seed distance on the day of surgery. If the final target-to-seed distance was >=10 mm, signifying significant migration, alternative localisation was performed on the day of surgery. Lesions with acceptable marker position underwent marker-guided excision as planned with the depth of the marker from the skin evaluated by preoperative ultrasound, followed by intraoperative guidance with the use of the probe. The presence of the markers in the specimens was confirmed with the probe by surgeons and by specimen radiographs with the radial margins evaluated.

Rates of placement success and retrieval success with a 95% confidence interval (CI) were calculated using the Wilson score method.15 Placement success was defined as a final target-to-seed distance <10 mm in any plane on images on the day of surgery, with reference to guidelines from the National Health Service Breast Screening Programme16 and previous studies.14 17 For degrees of magnetic seed marker placement success, the final target-to-seed distances were further subdivided into ≤1 mm, 2 to 5 mm, and 5 to 9 mm. Retrieval success was determined by the presence of the magnetic seed marker(s) in the specimen radiograph.

Electronic patient records were reviewed for patients’ demographics, preoperative pathology (if any), and indications for surgery. Specimen radiographs and pathology reports were reviewed to verify excision of target lesions and to evaluate the resection margins.

The target lesions were divided into two groups according to the indications for surgery. The surgery was considered to be of therapeutic intent if the target lesion had been proven to be malignant from preoperative pathology. Otherwise, the surgery was considered to be of diagnostic intent. Among the surgeries with therapeutic intent, margin clearance, defined as at least 1-mm disease-free margins, was assessed. The re-excision rate due to inadequate margin clearance was analysed. Complications related to magnetic seed marker deployment and surgeries were recorded.

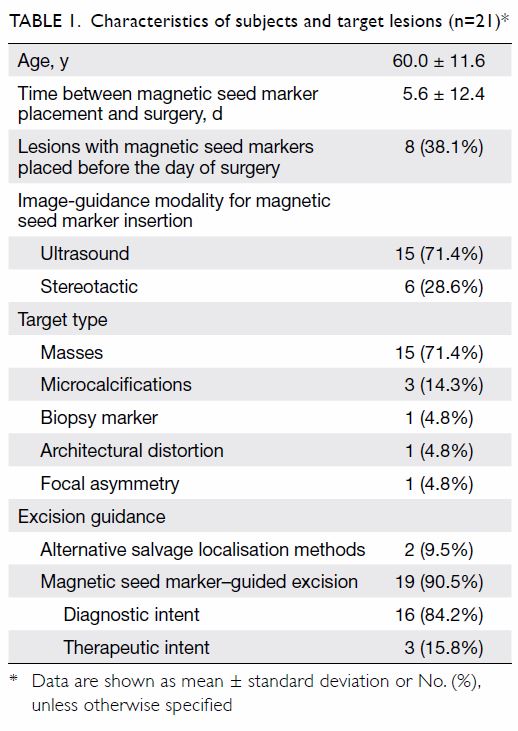

There were 22 Chinese patients with magnetic seed markers placed during the study period; one patient was excluded due to deferred surgery out of the study period (Fig 1a). A total of 21 patients, with mean age 60.0 years (range, 38-73 years) were included (Table 1). Thirteen patients (61.9%) each had one magnetic seed marker placed on the day of surgery, which were performed during the initial learning period of this new technique. Eight patients (38.1%) had nine magnetic seed markers inserted before the day of surgery in out-patient setting, ranging from 6 to 56 days from surgery with a median of 8 days (interquartile range=6.25-13.75) [Fig 1b]. Fifteen out of 22 magnetic seed markers (68.2%) were placed under ultrasound guidance, and seven magnetic seed markers (31.8%) were placed under stereotactic guidance. The most common type of target lesion was a solid mass (15 of 21, 71.4%), all of which had markers placed under ultrasound guidance. The other six lesions had magnetic seed markers placed by stereotactic guidance, including three groups of microcalcifications, one biopsy marker, one architectural distortion, and one focal asymmetry. One group of calcifications required two magnetic seed markers for bracketing due to its extensive distribution.

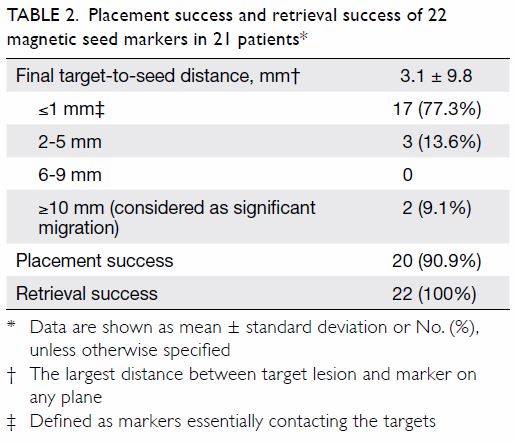

Two magnetic markers (9.1%) migrated >=10 mm away from their targets. Both had been placed under stereotactic guidance and migrated along the direction of breast compression (Fig 2). One of these magnetic seed markers was aimed for bracketing initially. No delayed migration was detected in all of the nine magnetic seed markers placed before the day of surgery, and there was no further migration of the two with initial migration. Among the 22 magnetic seed markers, 17 (77.3%) and three (13.6%) were ≤1 mm and 2 to 5 mm from their target, respectively (Figs 3 and 4). Therefore, placement success was achieved in 20 out of 22 magnetic seed markers, with a success rate of 90.9% (95% CI=72.2%-97.5%). The mean final target-to-seed distance was 3.1±9.8 mm (Table 2). The final distance between the two bracketing magnetic seed markers was 29 mm. All 22 magnetic seed markers were able to be localised by the probe intraoperatively and removed successfully (100%; 95% CI=85.1%-100%).

Two out of 21 lesions (9.5%) required alternative localisation performed on the day of surgery to guide lesion excision due to significant magnetic seed marker migration of >=10 mm. One of the lesions was a mammographic architectural distortion that could be visualised on ultrasound. The magnetic seed marker had migrated 13 mm laterally on mammogram. Ultrasound-guided skin marking was performed on the day of surgery with the magnetic seed marker detected and removed together with successful removal of the target lesion (Fig 2). Another lesion was a wide distribution of microcalcifications that required two magnetic seed markers for bracketing under stereotactic guidance. One of the magnetic seed markers migrated 45 mm along the direction of breast compression, with no significant associated haematoma. Salvage hookwire localisation was performed on the day of surgery. The target lesion and the non-migrated magnetic seed marker were first removed by hookwire guidance, and the migrated magnetic seed marker was then detected by the probe and removed.

Nineteen lesions (90.5%) had magnetic seed marker–guided excision as planned, with sonographic depth of the magnetic seed markers from skin ranging from 3 to 21 mm with a mean of 10.8±4.8 mm. Among these 19 lesions, 16 (84.2%) were excised with diagnostic intent and three (15.8%) were excised with therapeutic intent.

For the 16 lesions excised with diagnostic intent, preoperative biopsies or fine needle aspiration had been performed in 14 (87.5%) lesions. Core needle biopsy of 12 lesions, resulted in two with non-diagnostic findings, four with benign pathologies and six with high-risk findings; including four papillary lesions, one atypical ductal hyperplasia, and one with scanty atypical ductal cells. Fine needle aspiration was performed in two lesions, detecting one fibroadenoma and one papillary lesion. In final surgical pathology, two of these 16 lesions (12.5%) had a malignant upgrade from the core biopsy findings including one low-grade and one high-grade ductal carcinoma in situ (DCIS).

For the three lesions excised with therapeutic intent, both preoperative biopsy and final surgical pathology showed DCIS. The subtype of these lesions included a high-grade DCIS, a low-grade DCIS, and an intermediate-grade DCIS with atypical lobular hyperplasia. One of them had close (0.5 mm) margins and required re-excision, for a margin clearance rate of 66.7% and a re-excision rate of 33.3%. There were no reported complications related to magnetic seed marker localisation or lesion excision.

Successful localisation of breast lesions by magnetic seed markers was achieved in 19 out of 21 (90.5%) Chinese patients with a high placement success rate (90.9%) in our study. The majority of the magnetic seed markers were accurately placed with a mean final target-to-seed distance of 3.1 mm. All of the successfully placed magnetic seed markers were <5 mm of the target, with 85% of them ≤1 mm. In all, 100% marker retrieval was achieved without any reported complications. Such results were similar to several recent studies which revealed 100% successful magnetic seed marker retrieval14 17 18 19 20 and high placement success (96.7%-100%).14 17 18 Our re-excision rate for therapeutic intent surgery was found to be 33.3%, which was apparently higher than that reported in previous studies, ranging from 14.8% to 21.9%.17 18 19 This could be attributable to our small sample size with only three lesions excised for therapeutic intent. In fact, a prospective non-randomised control study by Zacharioudakis et al19 with 100 patients in each arm demonstrated that the outcome of magnetic seed marker localisation was comparable to hookwire localisation for breast conservation surgery in terms of re-excision rate. A systemic review by Fusco et al21 demonstrated that the successful localisation and margin clearance rates were 65% to 100% and 58% to 84%, respectively for hookwire localisation, and 93% to 100% and 60% to 100%, respectively for ROLL, while the margin clearance rates from other previous studies9 10 22 ranged from 57% to 87.4% for hookwire localisation and 75% to 93.5% for ROLL. All these suggest that magnetic seed marker is a feasible alternative localisation method.

Thirteen magnetic seed markers (59.1%) were placed on the day of surgery during our initial experience. The purpose was to ensure safety and to allow radiologists’ and surgeons’ familiarisation with the new device and workflow. Among all of the nine magnetic seed markers placed before the day of surgery (range, 6-56 d), none of them showed delayed migration on the day of surgery. This illustrates that delayed migration is unlikely to occur and it may not be necessary for patients to come back to the Radiology Department on the day of surgery to confirm magnetic seed marker position prior to the operation. Similar results were reported by a multi-centre open-label cohort study on mastectomy patients, which showed no migration of magnetic seed markers between placement and surgery, which were up to 30 days apart.20 This reassures the feasibility of decoupling of surgery and radiology appointments, which can potentially reduce localisation-related delay in surgery. Prolonged fasting before surgery and the associated increased risk of vasovagal syncope can therefore be avoided.9 Magnetic seed markers are approved to be placed up to 30 days prior to surgery in Hong Kong at the time this article was written. However, successful retrieval was achieved in one of our patients who had had her surgery deferred to 56 days after magnetic seed marker placement due to personal reasons. This suggests that magnetic seed markers may be applicable for long-term implantation, which has already been approved in the United States and Europe.

Due to limitations of signal transmission, magnetic seed markers are intended to be placed at a depth up to 3 cm from skin according to the manufacturer’s instructions.13 It is challenging to estimate the true lesion depth as the intraoperative breast position varies from the position during breast examinations, particularly when the breast is under compression during mammographic examinations. The distance from skin on the image does not necessarily reflect the shortest distance to the lesion and can be overestimated. Therefore, for lesions visible only on mammography, we selected those near the skin or at middle depth on mammography. For ultrasound-detected lesions, the sonographic depth of the lesion from the skin would be measured. We performed sonographic measurements for magnetic seed marker depth for all patients as the sonographic breast position should best resemble its intraoperative position. In our study, the depth of magnetic seed marker placement in successfully localised lesions ranged from 3 to 21 mm with a mean of 10.8 mm. All magnetic seed markers were able to be localised by the probe intraoperatively. The depth limitation of magnetic seed markers is probably not a major issue in the Chinese population, since Chinese females tend to have thinner breasts.23 Further study is warranted to validate this postulation.

Because of potential signal interference, two magnetic seed markers should not be placed at close proximity (<2 cm apart) within the breast.14 20 This can potentially limit its use in bracketing a target or in localising multiple target lesions in one breast. We had one case requiring two magnetic seed markers placed in the same breast for bracketing a group of microcalcifications. Although one of them showed significant migration from the initial target, the final distance between the two magnetic seed markers was 29 mm. Since there could be potential interference to the probe from hookwires, the target lesion and the non-migrated magnetic seed marker were first removed by hookwire guidance, and the migrated magnetic seed marker was then detected by the probe and removed. The utility of multiple magnetic seed markers in one breast should be further evaluated in future studies with larger sample sizes.

In our study, two magnetic seed markers (9.1%) were found to have undergone significant migration of >=10 mm from the target on post-insertion images. Both of them migrated along the direction of breast compression after the compression was released, with no significant hematoma detected radiologically or clinically. We postulate such migration to be resulting from the accordion effect, which is a well-known cause for clip migration after stereotactically guided biopsy. Fatty breasts are known to be more susceptible to accordion effect–related migration as they are more compressible and are usually compressed to a greater degree.24 The migrated biopsy marker can move in the direction of compression either proximal or distal to the needle track when the breast expands to its original size and shape after compression.25 26 27 28 It is best evaluated in the plane orthogonal to the direction of compression used.25 Such migration was also recognised in 5.9% of tomosynthesis-guided magnetic seed marker localisation procedures by a previous study.17 For prevention, it is suggested to hold and release the breast slowly from the compression pad after marker placement.17 Chinese patients probably have a lower risk of accordion effect–related migration, as they tend to have denser breasts.23 However, it could not be analysed in our study given our small sample size with only seven magnetic seed markers placed under stereotactic guidance. Future research with a larger sample size is needed to evaluate the association between breast density and seed migration.

There are several other drawbacks of magnetic seed marker localisation. Cost is a major concern as it is more expensive compared with hookwire or ROLL. Extra costs are needed for the initial purchase of the probes and instruments,17 as specialised non-ferromagnetic surgical instruments must be used to avoid magnetic interaction between magnetic seed marker and sensor. However, minimising localisation-related delay in surgery may reduce the operational cost and improve workflow efficiency. A full cost analysis is necessary in the future. In addition, magnetic seed markers could not be placed under magnetic resonance imaging (MRI) guidance as the deployment needle is made of stainless steel. Magnetic seed marker insertion is contra-indicated for patients who have pacemakers or implanted cardiac devices due to interference of the devices with the probe.29 Magnetic seed markers are not officially indicated for use in nickel allergy patients. Bone wax, which is used as a terminal plug in the deployment needle, contains beeswax, and may cause allergic or foreign body reaction.13 Magnetic seed marker deployment is also not advised in a patient who may undergo future breast MRI prior to surgery due to its void artefact of 4 to 6 cm distance,5 9 which influences the MRI diagnostic accuracy.5

There are several limitations to this study. It is a single-institution retrospective study without direct comparison to our hookwire localisation or ROLL cases. Patients were selected for magnetic seed marker localisation in a multidisciplinary meeting involving breast radiologists and breast surgeons and this might introduce selection bias. We did not have any patients with a preoperative diagnosis of invasive carcinoma in our study, as sentinel node and occult lesion localisation with a radioisotope still remains the preferred localisation method for invasive carcinoma requiring sentinel lymph node biopsy in our centre. This can be performed in one single procedure instead of two, thus minimising patients’ discomfort and potential complications from the procedure. However, magnetic seed markers have been reported to be a safe and feasible method for image-guided excision of invasive carcinoma.14 17 18 As discussed before, our small sample size limited our analyses of migration and margin clearance rates, and the evaluation of the feasibility of using multiple seeds in one breast for bracketing a lesion or for localising multiple lesions. A prospective randomised trial with larger sample size will be necessary to fully compare wire localisation and ROLL to magnetic seed marker localisation. Patient satisfaction, the reproducibility operator dependence of magnetic seed marker deployment and intraoperative localisation, specimen weight, and cosmetic outcome can also be investigated in future studies.

The magnetic seed marker system demonstrated safety and efficacy in Chinese women to localise and excise non-palpable breast lesions and appears to overcome many of the limitations of conventional localisation techniques. It can be an alternative to hookwires or ROLL in selected patients. Future research is needed to validate the results.
